# HelloID

##### Form element settings reference
###### Common options
Label

The name of the form element. Displayed on the in-production form.

Placeholder

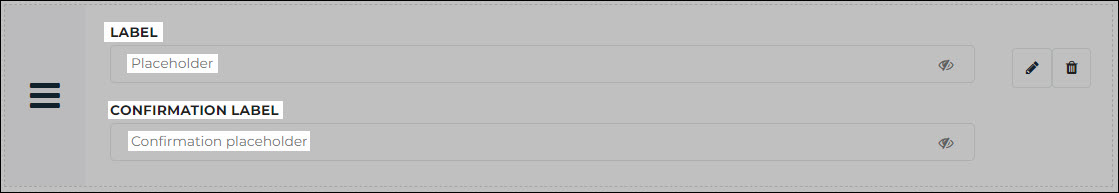

A UI hint, to prompt the end user on what value to enter. Not treated as a default value when the form is submitted. Compare with Prefilled Value.

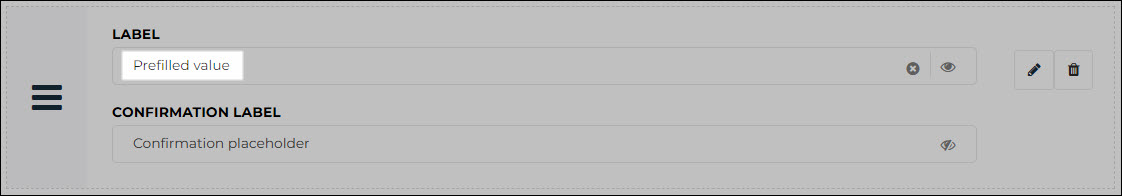

Prefilled Value

A default value. If left unchanged, will be submitted as if the user had entered it. Compare with Placeholder.

Use Data Source

Populate the element using a data source instead of static values. See Data sources.

• Value Field: The field from the data source's Model Definition whose values will uniquely identify the form element's fields.

• Text Field: The field from the data source's Model Definition whose values will label the form element's fields.

• Default Selection: Enable to pre-select a field for the form element, based on a Selection Property.

• Selection Property: The field from the data source's Model Definition that determines which form element field will be pre-selected. The first object with a value of true for the selected property will be pre-selected. For the Multiselect element, multiple objects may have a value of true.

• Use Value From Other Field (PowerShell data sources only, when one or more input keys are configured): Passes the output of a different form element into the relevant PowerShell data source input key.

• Name (Native data sources only): Enter a string to filter the values which will be populated from the data source into the form element. Prepend and/or append * as a wildcard.

Validation Options

Prevents the form from being submitted if the entered values do not conform to the specified validation options.

• Required: The form cannot be submitted unless this form element has been filled out.

• Minimum Length: For form elements with text input, specifies a minimum character length.

• Maximum Length: For form elements with text input, specifies a maximum character length.

• Pattern Match: For elements with text input, specifies a Regex pattern to match.

Form Key

A string that uniquely identifies this form element. Can be used in the following ways, to access the submitted value(s) for this element:

• In Product tasks, using the syntax {{request.form.<formElementKey>}} (see the {{request.form.*}} Service Automation variable). For example, {{request.form.checkboxInput}}.

• In Delegated form PowerShell scripts, using the syntax $form.<formElementKey>. For example, $form.checkboxInput.

### Note

You cannot use form keys in PowerShell data sources. If you need to pull an element's submitted value into a PowerShell data source, you must instead configure an Input Key for the data source and connect the element using the Use Value From Other Field option.

Summary Visibility

The last page an end user sees when filling out a form is a summary page. Select the appropriate option to hide this form element (or just its value) from the summary page.

Conditional Visibility

Only show this form element if a specified condition is met.

• Field Is Visible When: The condition which determines if this form element is shown. The condition is based on the current state of a different form element in the same form.

Enable Filter

Show a text box in the element with which the user can filter available values.

###### Element-specific options
Use Data Source

Populate the element using a data source instead of static values. See Data sources.

• Checked Status Field: Available when a Checkbox Input element is connected to a data source. Select the field from the data source's Model Definition that determines whether the checkbox is selected by default. Boolean true values will set the box to checked; anything else is interpreted as false.

• Value Property: Used in the Date & Time element. The field from the data source's Model Definition that determines the element's default value. The model definition should contain a single field whose value is in the format emitted by the JavaScript Date.toJSON() method: 1975-08-19T23:15:30.000Z

• Source For Pre-Filled Options: Used in the Dual List element. The field from the data source's Model Definition that determines which values are prefilled in the right side column.

Checked By Default

Available when a Checkbox Input element is not connected to a data source. Determines whether the checkbox is selected by default. If this option is disabled, then the default value is null when programmatically interacting with the checkbox. If the form user checks and unchecks the checkbox then the value will become false. Evaluate a checkbox in PowerShell using = $true or !=$true.

Use Switch

Show toggles instead of traditional checkboxes in a Checkbox Input or Multi Checkbox element. Does not change functionality.

Dual List Options Definition

Used in the Dual List element. Statically define the left side column options. The definition should be a JSON array of objects, each with two properties: a unique identifier and a label. You must enter the names of these two properties, respectively, into the Key and Display fields under Mapping Properties.

Mapping Properties

Used in the Dual List element. Specifies the JSON properties to use for the options' unique identifiers and labels. If a data source is not connected, you must enter the property names manually. If a data source is connected, select the property names from the dropdown menus.

• Key: The JSON property that will uniquely identify the fields.

• Display: The JSON property that will label the fields.

Column Mapping

Used in the Grid element. Choose the fields from the data source's Model Definition that will be mapped onto the grid's rows. Click Get Columns From Datasource to automatically suggest a mapping.

• Column Header: Each entry represents a column in the grid.

• Field: The field from the data source's Model Definition that will be mapped onto the rows of this column.

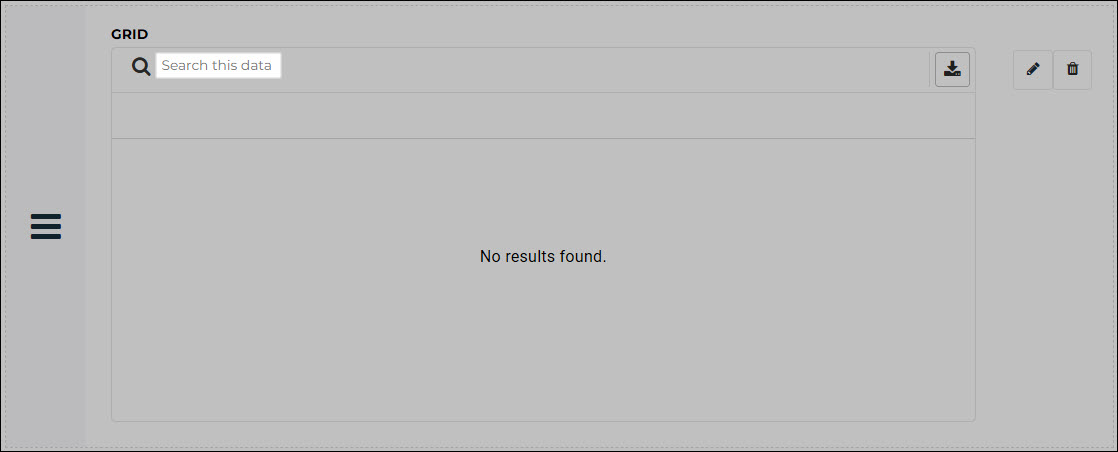

Use Search Filter

Used in the Grid element. Show a text box in the grid with which the user can filter available values.

Scope

A user scope filter that determines which users will be populated into a User Selector element. See User scope filters.

Read Only

Prevents the user from editing the value in a Text Input or Password Input element. The main use case is when you need to generate a read-only value (e.g., a password) in a delegated form using a PowerShell data source, show it to the user, and then pull the value into the delegated form's PowerShell script (using the syntax \$form.<formElementKey>). A Text element doesn't work for this use case, because it doesn't have a Form Key and therefore can't be accessed in the delegated form's PowerShell script.

Make Component Dependent

Make the value of a Text Input or Confirm Password Input element mirror the value of another element in the form, or a URL query parameter.

• Choose What To Depend On: Whether to mirror another form element, or on a URL query parameter.

• Choose Your Component To Depend On: The form element to mirror.

• Depend On A Specific Property: The specific property of the form element to mirror, if the element outputs an object instead of a string.

• Query Parameter To Depend On: The URL query parameter to mirror. When you send users to the form, you must prefix this value with form_. For example, if you enter car_color in this field, you would send users to a URL such as https://enyoi.helloid.org/<form_url>?form_car_color=red. This URL would populate this Text Input element with the value red.
