HelloID

Momo Medical SAML application setup

Follow these instructions to set up the Momo Medical SAML SSO application in HelloID.

Tip

For more information about managing applications, see Applications.

Requirements

  • Momo Medical environment

Step 1: Add a certificate

  1. Go to Settings > Certificates.

  2. Click Create Self-Signed Certificate.

  3. Set the following fields:


    1. Name Of Certificate: MomoMedicalSelfSigned

    2. Common Name (Domain): <yourcustomerid>.helloid.com

    3. All other fields: set according to your organization's requirements.

  4. Click Save.

Step 2: Add the application

  1. Go to Applications > Applications.

  2. Click Open Application Catalog.

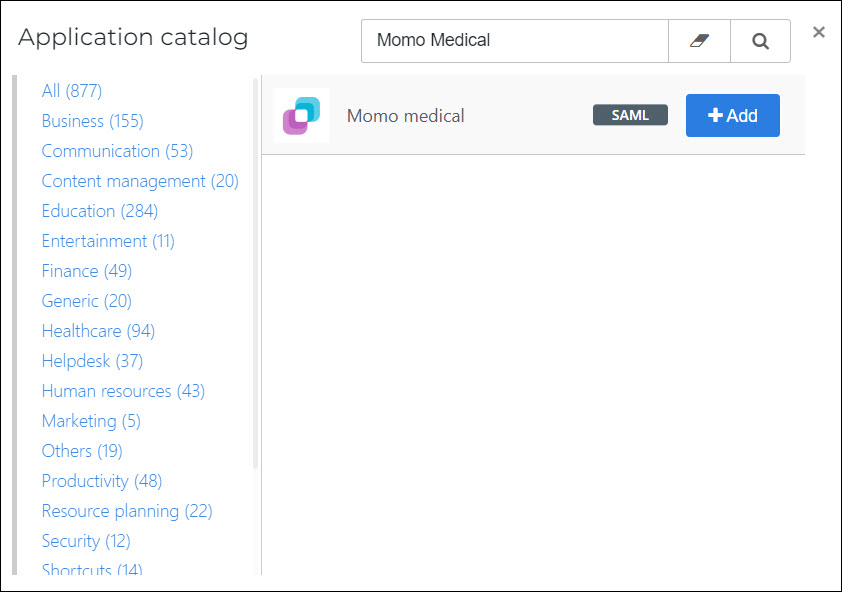

  3. Search for the Momo Medical app template, and click Add.

Step 3: Application setup

Tip

For details on all available fields, see the Application settings reference.

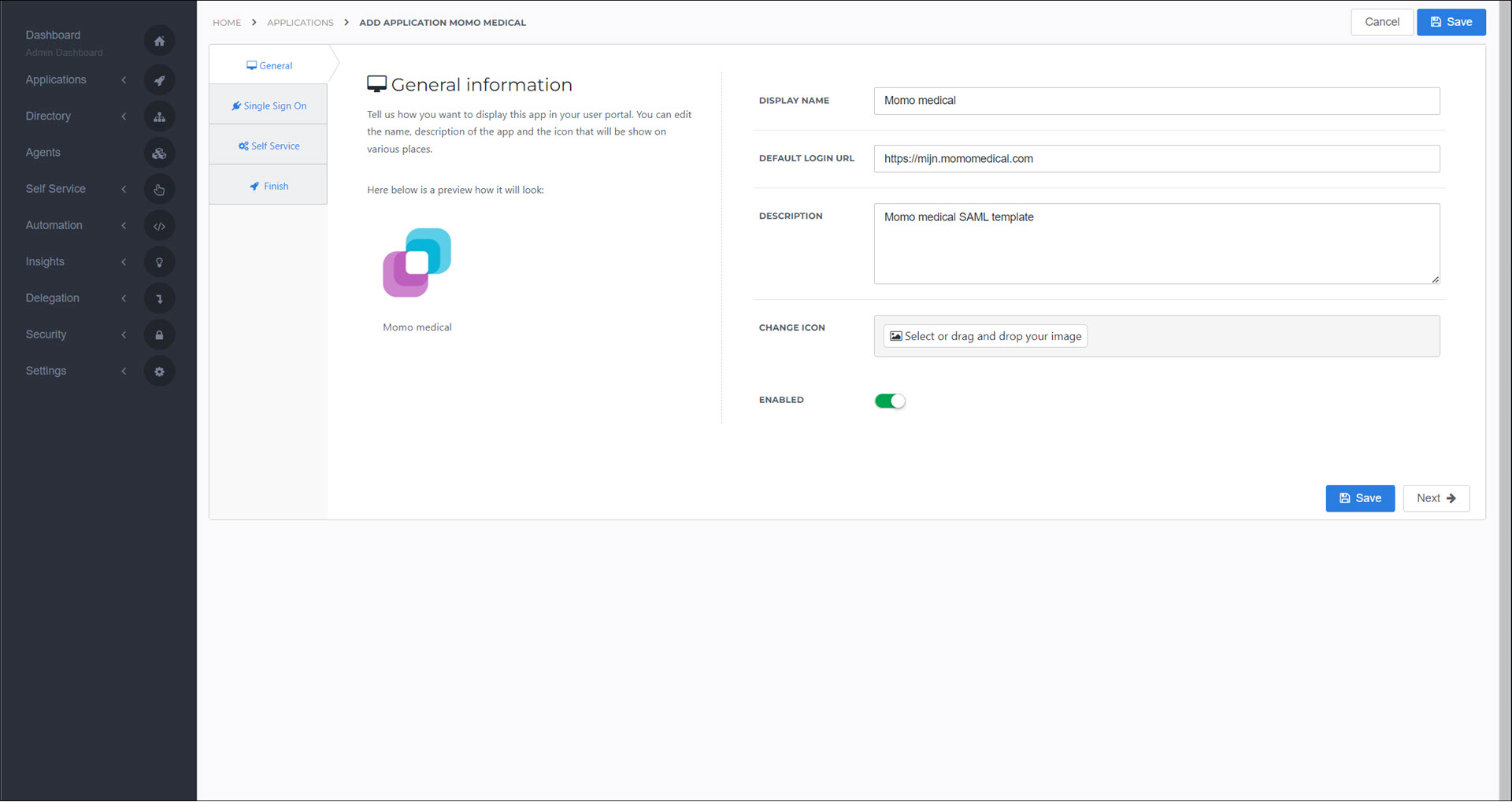

  1. On the General tab, set the following fields:

    Default Login URL

    https://mijn.momomedical.com

  2. Click Next.

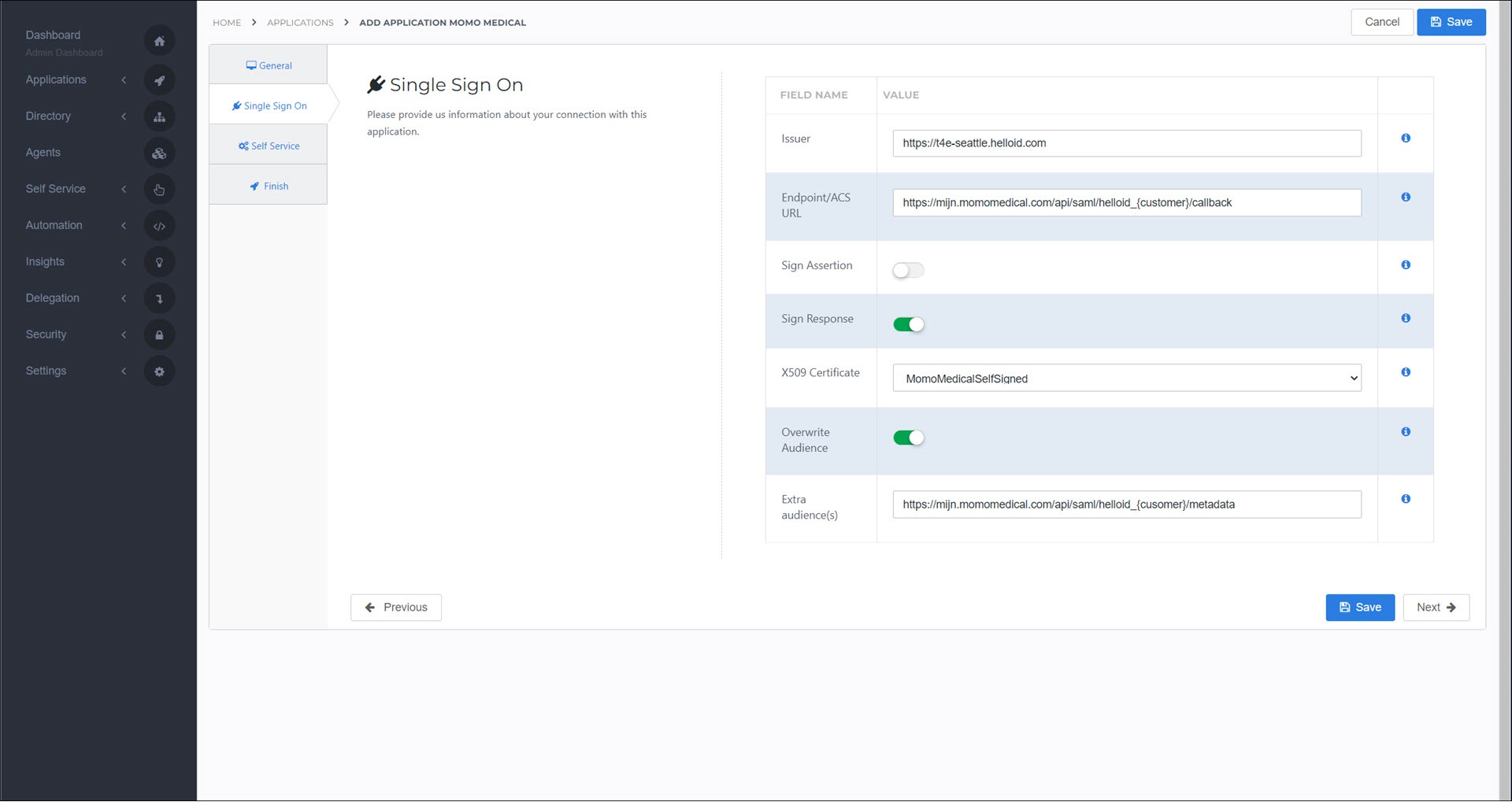

  3. On the Single Sign On tab, set the following fields:

    Issuer

    <your HelloID portal URL> (e.g. https://t4e-seattle.helloid.com)

    Endpoint/ACS URL

    Enter the ACS URL provided by Momo Medical (e.g. https://mijn.momomedical.com/api/saml/helloid_{customer}/callback)

    Sign Assertion

    Disabled

    Sign Response

    Enabled

    Certificate

    Select the self-signed certificate you previously created.

    Overwrite Audience

    Enabled

    Extra Audience

    Enter the Metadata URL provided by Momo Medical (e.g. https://mijn.momomedical.com/api/saml/helloid_{cusomer}/metadata)

  4. Click Next.

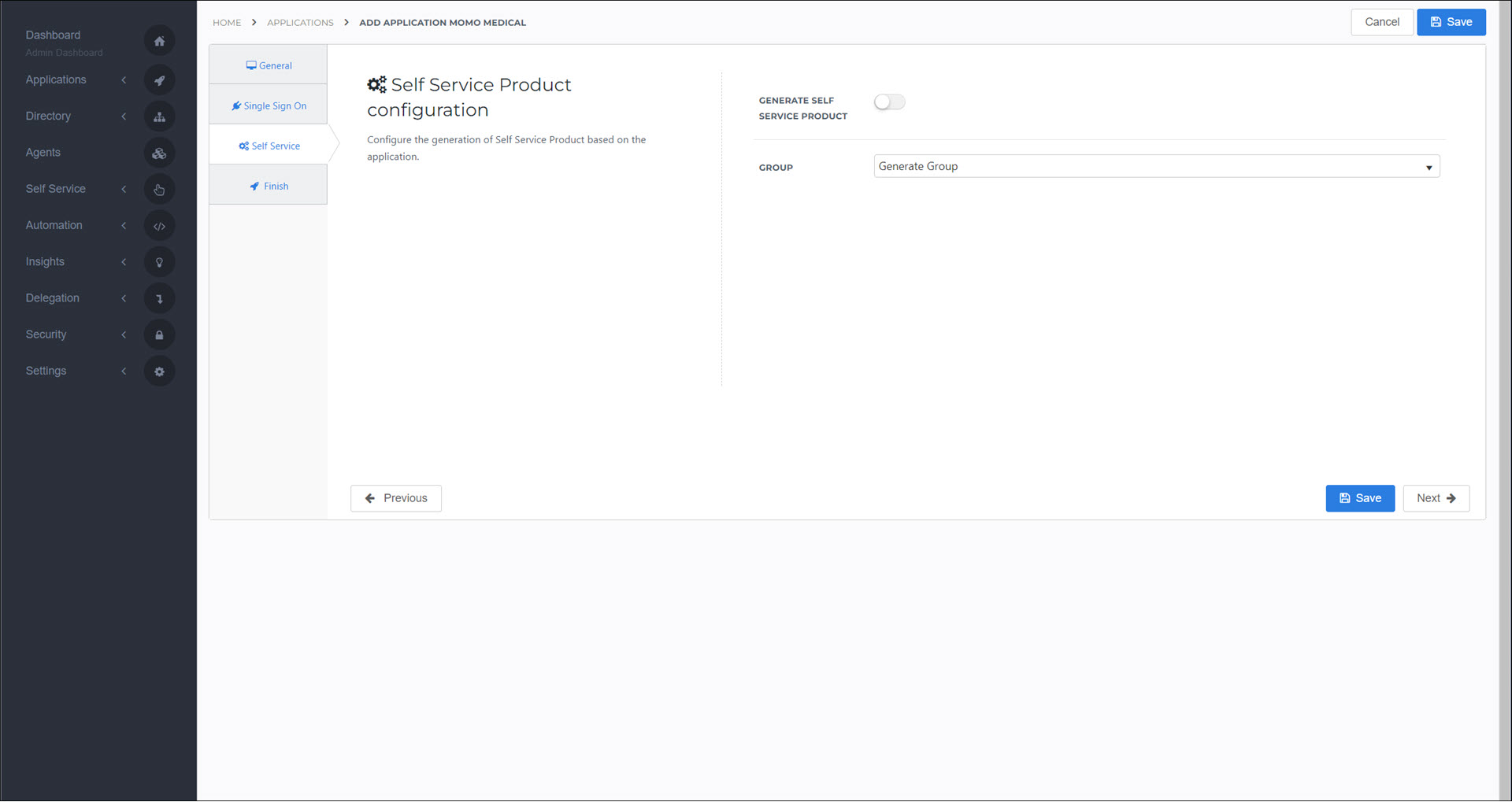

  5. On the Self Service tab, choose whether to generate a product (see Products) for users to request this application. If you do, select the Group that will be linked to the product.


  6. Click Next.

  7. On the Finish tab, click Save.

Step 4: Mappings

  • For the Momo Medical application, Customize a mapping set.

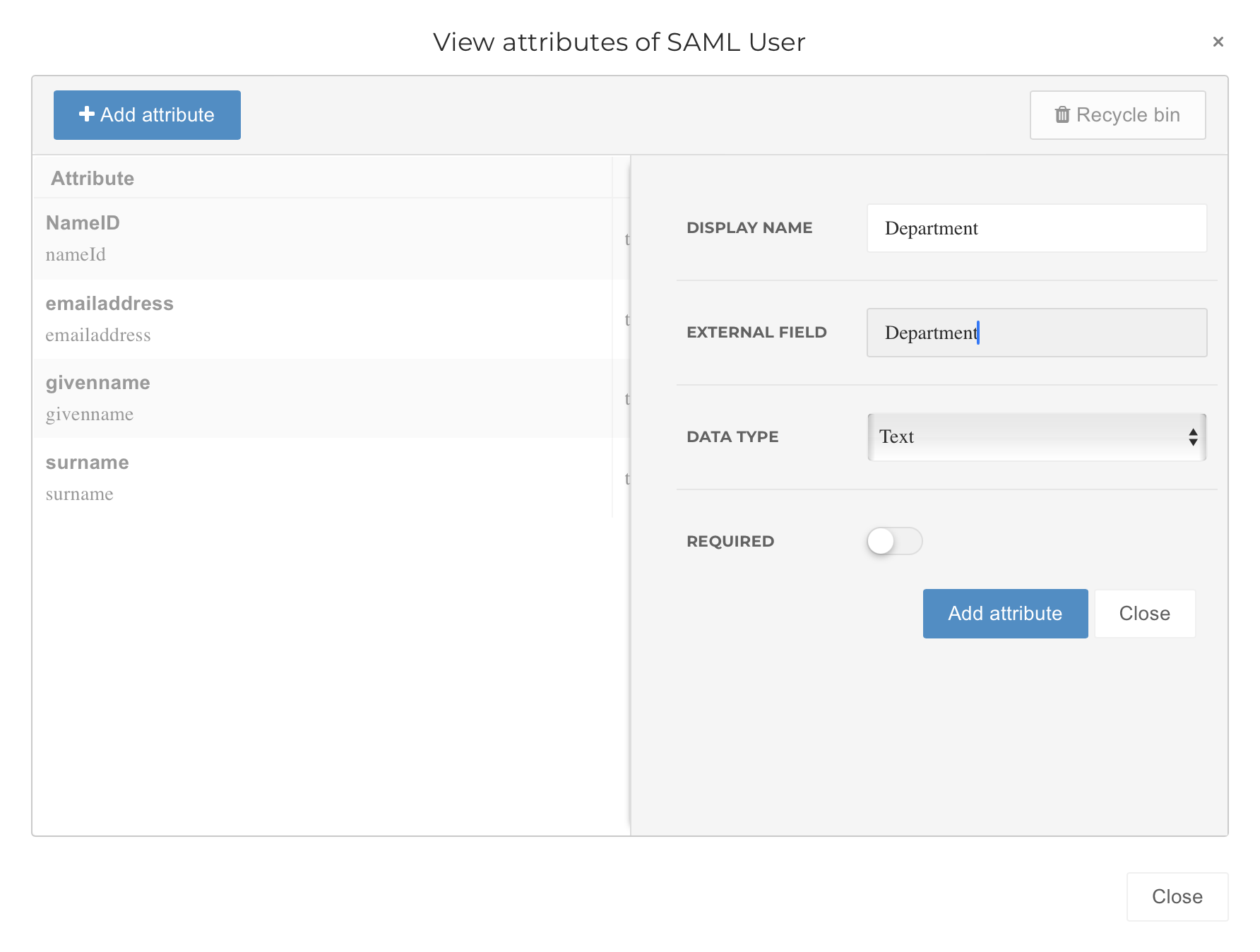

    1. Add a Department attribute.

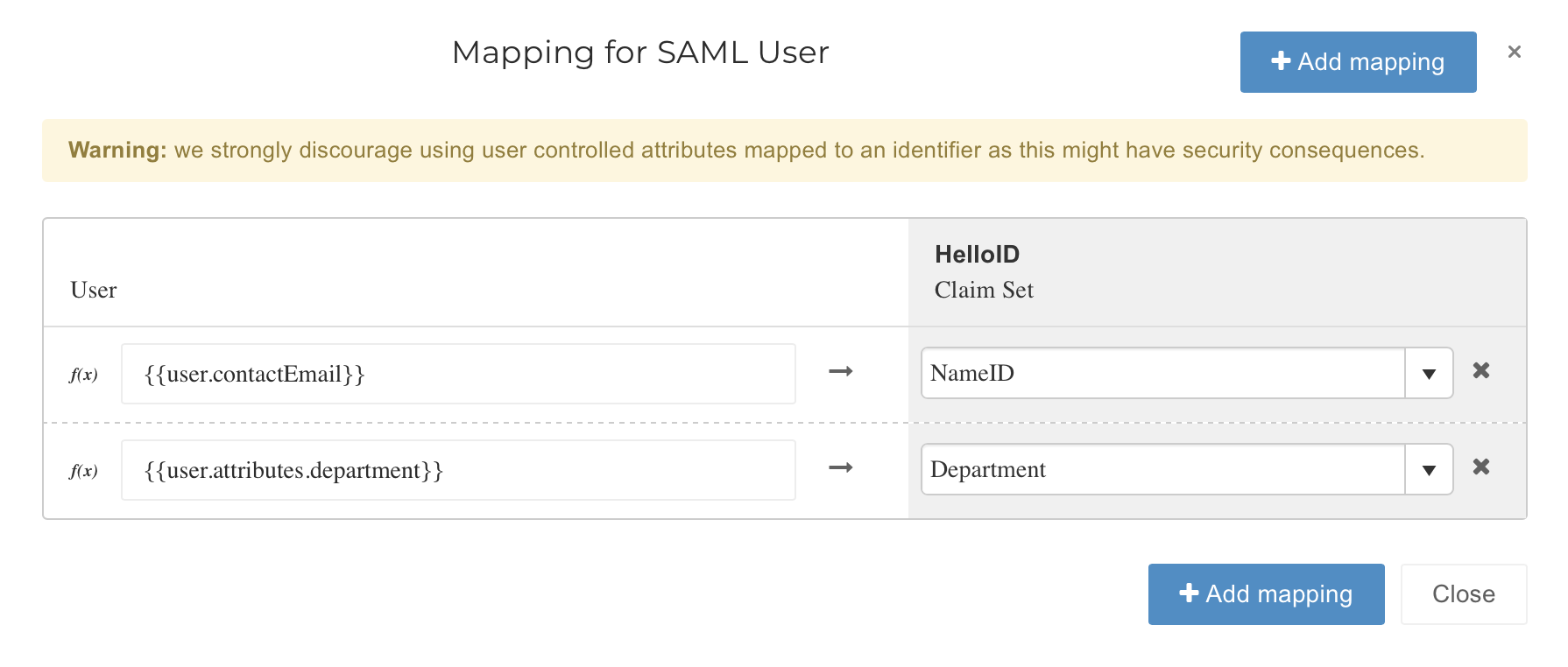

    2. Map the Department attribute to {{user.attributes.department}}.

Step 5: Post-setup configuration
HelloID side

  1. Get the application's metadata.

    1. Go to Applications > Applications and click Edit for this application.

    2. Right-click Download Metadata and click Copy Link Address. Save it to a local file on your machine.

      Example 1. SAML Metadata

      https://enyoi.helloid.com/metadata/download?ApplicationGUID=c277185a-cd1f-451c-8068-c751ed85a028



  2. Send the metadata URL to Momo Medical. They will need it to finish the setup process on their end. After Momo Medical has added the connection, they will contact you to test the connection.

Step 6: Test the application

  • Using a HelloID account that has access to the application, go to Applications for users on the user dashboard, and launch the application to test it.

Step 7: Finish up

The application has been added to HelloID, and a trust has been configured. You may now want to do the following:
